Thermoline

Copper Pipes & Tubes / Coil

Thermoline Pipes are proud of ability to supply a wide size rang1e for refrigeration and air conditioning system. These copper tubes are supphed in both hard drawn su-aigth Ieng ht and annealed coils, after meticulous cleaning, dehydrating and capping, to ensur,e that the internal cleanliness standards are fullly met.

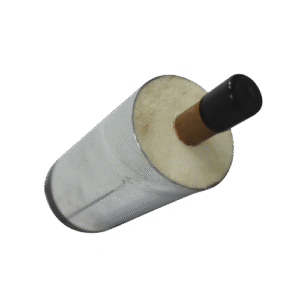

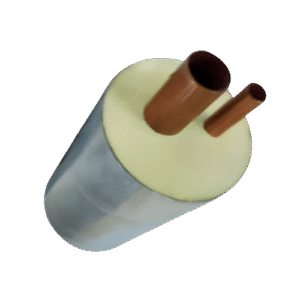

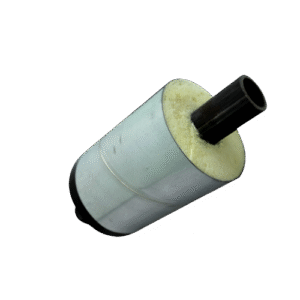

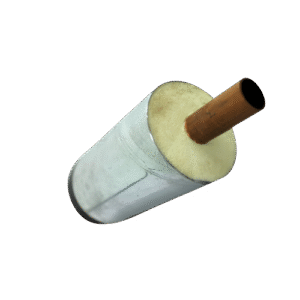

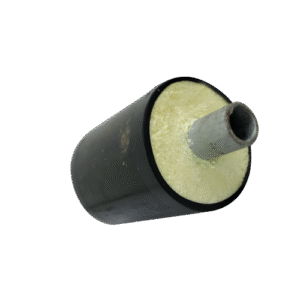

Super Power Pre-Insulated Piping System

  • Adaptable to different design condition:
    Allied Foam’s “Super-Power” Pre-insulated Pipe mainly consists of three essential elements which are Carrier Pipe, Jacketing and Insulation. Different selections and specification can be made to meet designer’s requirement. “Super-Power” Pipe can be applied to Chilled Water/Hot Water System, Refrigerant System, Cold Room Condition & etc.
  • Optional Peripheral Jacketing:
    In order to sustain a challenging weather or mere hazard condition such os underground, seaside, below freezing point, corrosive environment etc.), protective casing can be applied to “Super-Power ” Pipe. Variances of jacket casing material are Galvanised Steel, Stainless Steel, Aluminium, Colour Bonded/Coated Galvanised Steel, High Density Polyethylene (HDPE), Plastic material and etc.
  • Higher Insulation Performance:
    As compared to other insulation available in the industry. “Super-Power” Pipe has lower thermal conductivity K Value vice versa higher insulation performance. Due to Polyurethane foam like perming chemical reaction, it forms a strong adhesive bond to the pipe’s surface resulting a firm and dense insulation enveloping the pipe.

Polyurethane Technical Data:

PROPERTIES TEST STANDARD UNIT VALUE
CORE DENSITY ASTM D1622 KG/m3 45 50 60 70 80
THERMAL CONDUCTIVITY ASTM C518 W/m·K 0.021 0.021 0.021 0.023 0.024

Allied Foam CFC Free Insulation Data:

  • Pre-insulated pipe shall be rigid polyurethane & completely fill in annular space between carrier pipe end outer jacket.
  • The following table contains the typical foam physical properties of FCF free PU system and tested under respective ASTM and ISO standard.
  • Pre-insulated pipe shall be rigid polyurethane & completely fill in annular space between carrier pipe end outer jacket.
  • The following table contains the typical foam physical properties of FCF free PU system and tested under respective ASTM and ISO standard.
